X ray Scanning Machine SPX-5030A for School small parcels inspection
X - ray is a kind of electromagnetic wave that can penetrate the opaque objects such as wood, cardboard and leather. According to the degree of absorption of X rays by the object, the detector can present different colors on the screen. In simple terms, orange represents organic matter, such as food, plastic, etc.; books, ceramics, etc. are shown green, and metal is blue. At this time, the security inspector quickly looked at the X - ray scanning perspective and was able to judge whether there was a contraband with a lot of experience.
Specifications
| Tunnel size |
504*320mm (w*h) |
| Conveyor speed |
0.20m/s |
| Conveyor height |
693mm |
| Max Load |
100kgs |
| Wire Resolution |
38AWG |
| Spatial resolution |
vertical:diameter 1.0mm,horizontal:diameter 1.0mm |
| Penetration |
10mm steel panel |
| Monitor |
17inch,resolution 1280*1024 |
| X Ray generator anode voltage |
80KV |
| Cooling/operation cycle |
Oil Cooling /100% |
| X ray Dose per inspection |
<0.16 μSv |
| Image processing |
Pseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image |
| Zoom |
Variable zoom up to X32, support continuous magnification. |
| Image Checking |
Continuous check back image |
| Storage capacity |
Can store more than 100000 image |
| Dose per inspection |
<0.125 μSv |
| Radiation leakage |
<0.4 μSv/h(5cm away from fame),in full compliance with all international radiation safety requirements. |
| Film safety |
In accordance with ASA/ISO1600 film safe standard |
| System function |
F programmable key,high density alarm,TIP；date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training. |
| Optional function |
Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up |
| Frame size |
1199*728*1197mm (L*W*H) |
| Weight |
280kg |
| Environment temperature/humidity |
- 3℃～+40℃±2℃ / 5%～95%(non-condensing) |
| Storage temperature/humidity |
-43℃～+60℃±2℃ / 5%～95%(non-condensing) |
| Power |
220VAC (+/-10%) 50+/-3HZ |
| Consumption |
0.6KvA |
| Noise Level |
<55db |
High Light
- Black white and Pseudo color display
- Windows 7 operation system
- With independent industrial computer
- Professional multi-function operation keyboard
- Automatic save scanned image
- Reliable performance
- Friendly Image processing interface
- Single energy penetration system
- New radiation protection technology
- TIP program
- Clear and distinct image
- Scanned imaged can zoom up to 32 times
- Integrated structure design, refinement appearance
Application field
Entertainment venues, tourist attractions, office buildings, shopping malls, factories, etc
Suitable for security inspection of briefcase, hand luggage, postal parcels and other small package
Scan Image

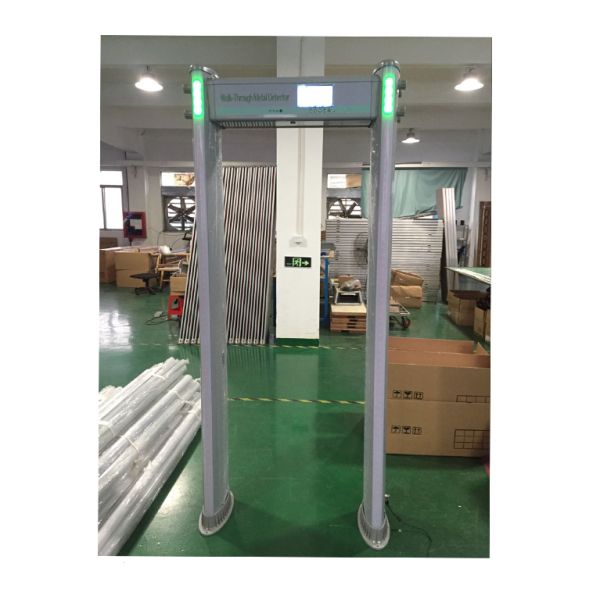

Related Products: Walk Through Metal Detector
